Products

Trochoid Pumps

Model 3 (Intermediate capacity)

N3H

Specifications

Model/Item Theoretical
Displacement
(cm3/rev)		 Theoretical Discharge
(L/min)		Max.
Pressure
(MPa)		 Max.
Revolution
(min-1)		Approx.
Weight
(kg)
1500min-1 1800min-1
TOP-N320H 26 39 46.8 4 1,800 14.8
TOP-N330H 39 58.5 70.2 * 4.0 1,800 14.9
TOP-N340H 52 78 93.6 * 3.0 1,800 14.9
TOP-N350H 65 97.5 117 * 2.0 1,800 15.6

More info....

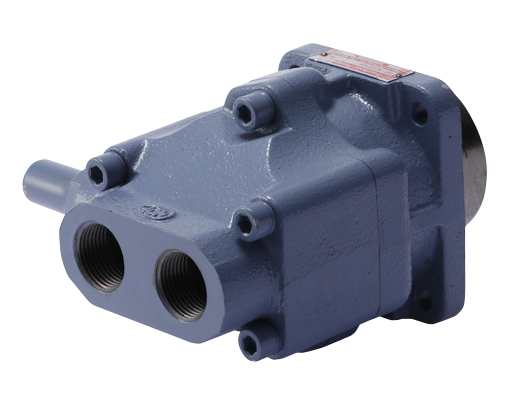

N3F

Specifications

Model / Item Theoretical
Displacement
(cm3/rev)		 Theoretical Discharge
(L/min)		 Max.
Pressure
(MPa)		 Max.
Revolution
(min-1)		 Approx.
Weight
(kg)
1500min-1 1800min-1
TOP-N320 FAM 26 39 46.8 2.5 1,800 8
FAMVB 10.5 3.6
FBM 9 3.8
TOP-N330 FAM 39 58.5 70.2 * 2.5 1,800 8 4
FAMVB 10.5 4.1
FBM 9 4.3
TOP-N340 FAM 52 78 *93.6 * 2.0 1,800 8 4.6
FAMVB 10.5
FBM 9 5

More info....

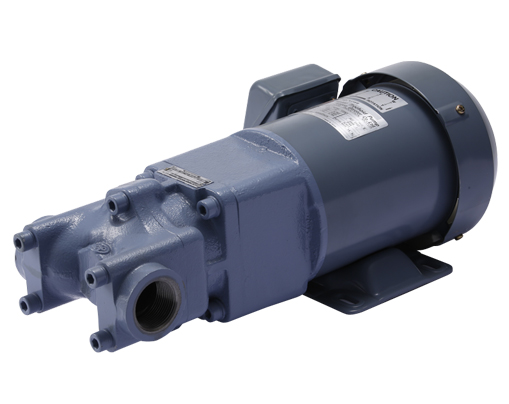

3MF_N3F

Specifications

Model / Item 1500min-1 (50Hz) 1800min-1 (60Hz)
Theoretical
Discharge
(L/min)		 Max. Pressure for Motor Output
(MPa)		 Theoretical
Discharge
(L/min)		 Max. Pressure for Motor Output
(MPa)
750W 1500W 2200W 750W 1500W 2200W
TOP-N320 FA 39 0.4 1.3 2.1 46.8 0.2 1 1.7
FA VB
FB
TOP-N330 FA 58.5 0.1 0.8 1.3 70.2 - 0.6 1
FA VB
FB
TOP-N340 FA 78 - 0.5 0.9 *93.6 - 0.3 0.6
FA VB
FB

More info....

3V

Specifications

Model / Item Theoretical
Displacement
(cm3/rev)		 Theoretical Discharge
(L/min)		 Max.
Pressure
(MPa)		 Max.
Revolution
(min-1)		 Approx.
Weight
(kg)
1500min-1 1800min-1
TOP-330V 39 58.5 70.2 1 1,800 19.3
TOP-340V 52 78 93.6 1 1,800 19.5
TOP-350V 65 97.5 117 1 1,800 19.3

More info....




For More information about above products Please Click Here
